WIX offers three Multi-specification models to cover a range of gel sizes and combs:
| Model | Trays included | Reversible combs included | External tray included | Buffer volume |
|
#10102001 |
70×70mm 70×100mm | 0.75mm: 9 wells / 16 wells 1.0mm: 9 wells / 16 wells 1.5mm: 9 wells / 16 wells |
√ |
260ml |
|
#10101001 |
130×130mm 130×65mm 65×130mm 65×65mm |
0.75mm：7+7 wells /14 wells 0.75mm：9+9 wells /19 wells 1.0 mm:12+12 wells/ 27 wells 1.5mm: 7+7 wells / 14 wells 1.5mm: 9+9 wells / 19 wells 2.0mm: 3+2 wells / 3+3 wells |
√ |
1000ml |
|
#10109001 |
120×120mm 120×60mm 60×120mm 60×60mm | 1.0mm: 11+11 / 25 wells 1.5mm: 6+6 / 13 wells 1.5mm: 8+8 / 18 wells 2.0mm: 2+3 / 2+3 wells |
√ |
1000ml |
Combs with 14,19,27 wells in WIX-midiDNA, and 13,18,25 wells in WIX-liteDNA, supports 8/12 Multi Channels pipettors
Manuals

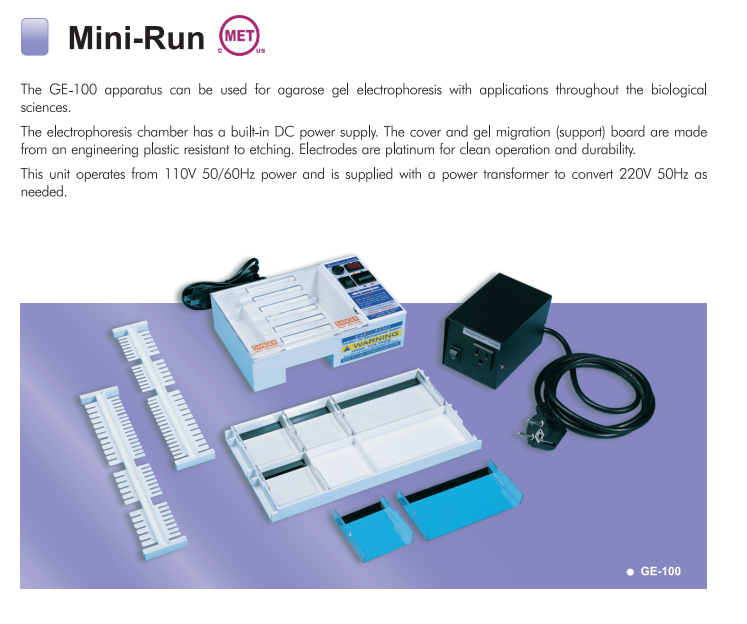

Bioer Mini-Run
